Green Formwork is an advanced steel panel-prop formwork system which allow early stripping process.It provides a suitable formwork solution to most concrete structure and components and meets the general requirements of different constructions methods and conditions.

The system adopts the structural mechanism of a 4 -legs table using puzzle-style &systematic installation approach.Both panel&props are made from Q355B,the surface is either hot dip galvanized ,or powder coated,or both on all the components .

Characteristics:

*Safe&Reliable

Stable system with 6 directions locking restriction .No Human lifting above shoulder required .

* Fast&Efficient

4-Worker team for erection,stripping&removal .Can Achieve 60m2 work done per man-day .

*Simple&Innovative

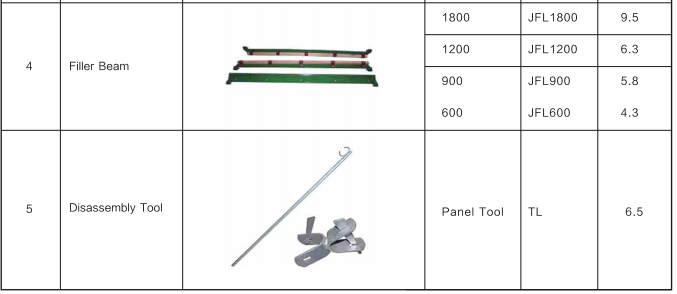

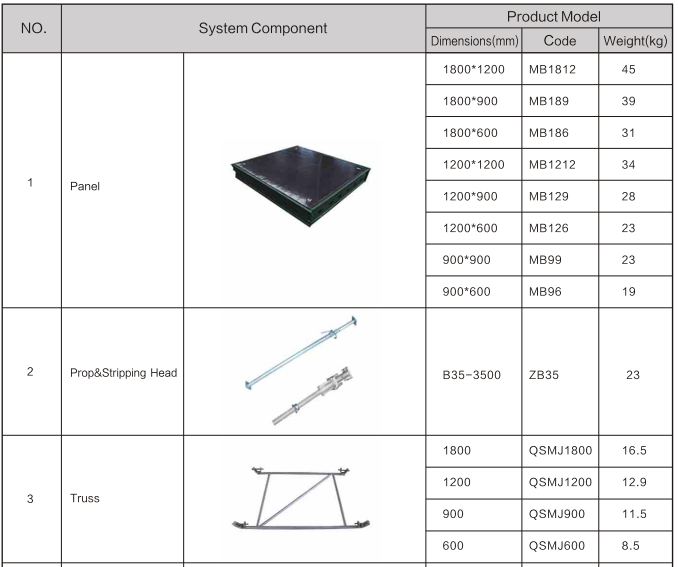

Only few components: Panel,Prop& Aux Beam/Panel

Do not require cross/lateral braces&tripods easy to Transfer both horizontally &vertically .
