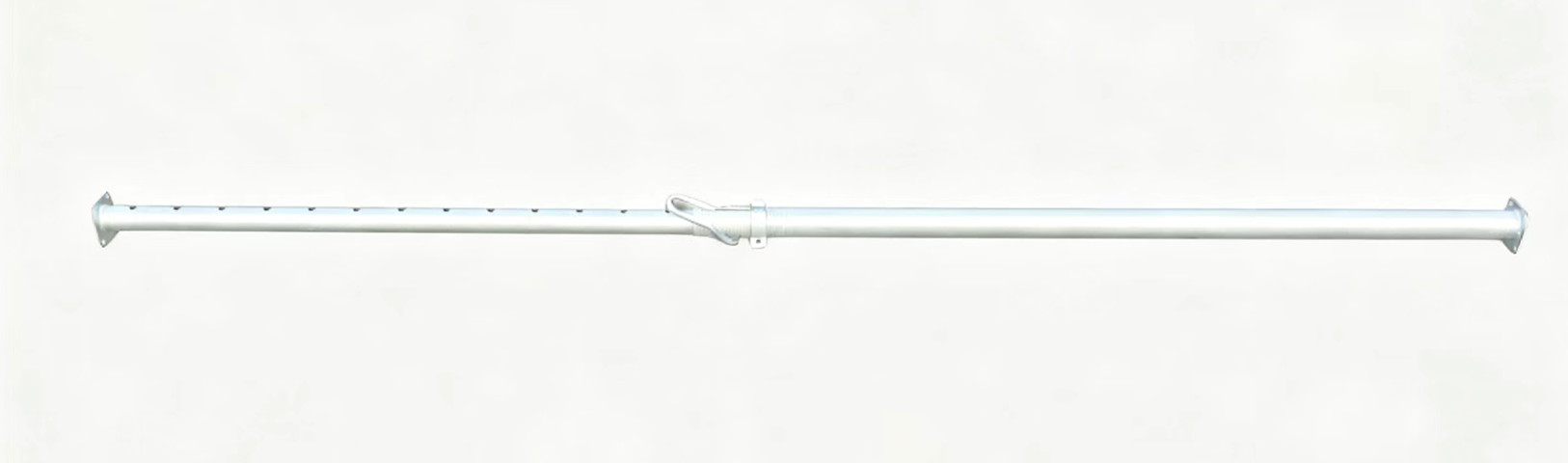

Adjustable

Shoring Prop Technical Specification

Inner Tube
Diameter: 63.5 mm
Thickness: 3.25 mm
Length: 1900 mm (including top plate)
Material: Q355B

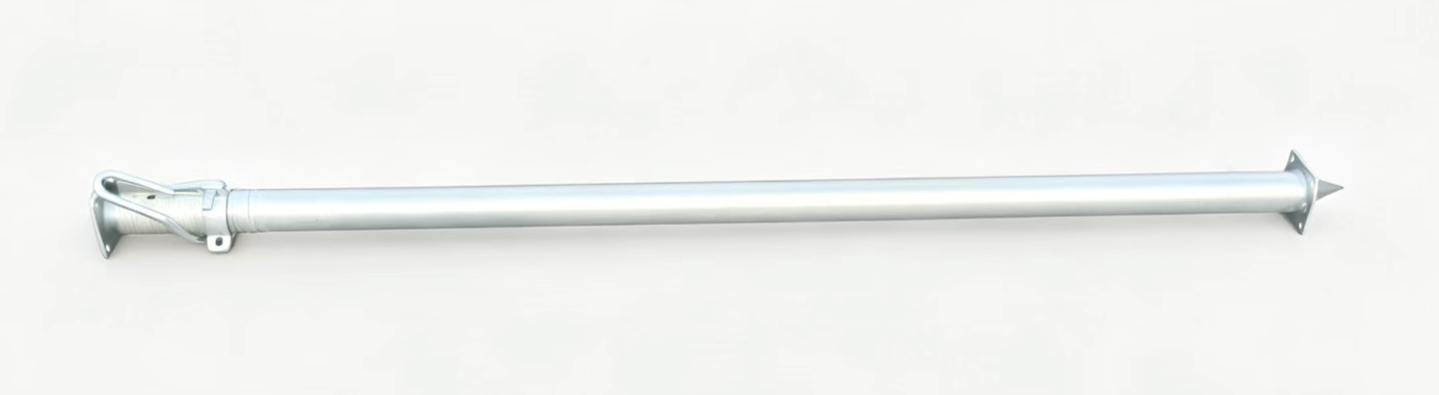

Outer Tube
Diameter: 76 mm
Thickness: 2.5 mm
Length: 1642 mm (including base plate)
Material: Q235B

Base Plate
Size: 120 × 120 mm
Thickness: 5.75 mm (±0.15 mm)
Hole Diameter: 13 mm
Hole Spacing (Center to Center): 90 mm
Material: Q235B

G-Type Hook
Diameter: 16 mm
Material: 45# Steel

Nut
Forged steel nut, marking available upon request

Adjustable Screw (Threaded Section)
Diameter: 76 mm
Thickness: 4.75 mm
Length: 238 mm
Processing: Precision lathe machining

Top Plate / Base Plate
Steel stamped marking available

Surface Treatment
Electro-galvanized
