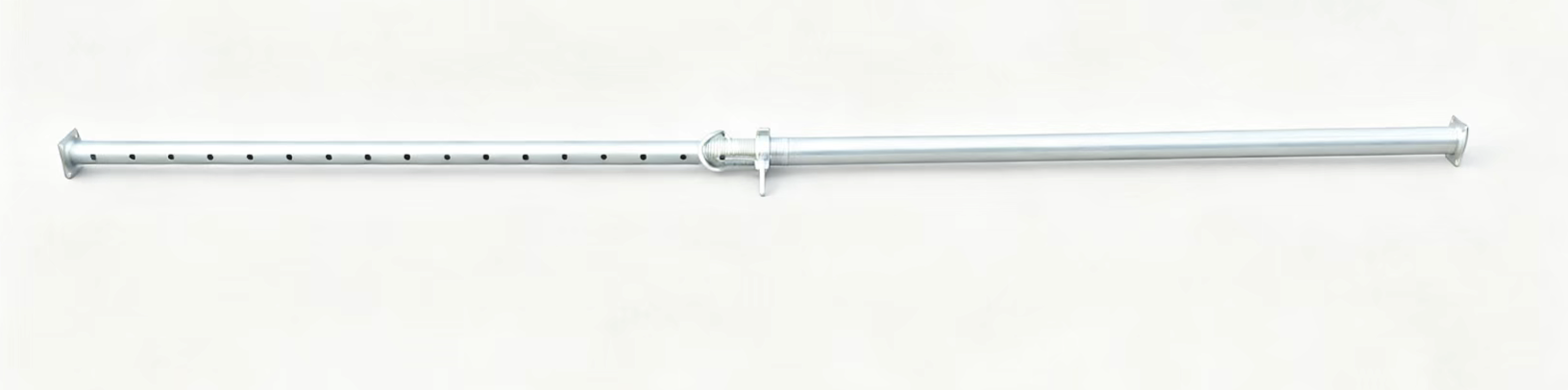

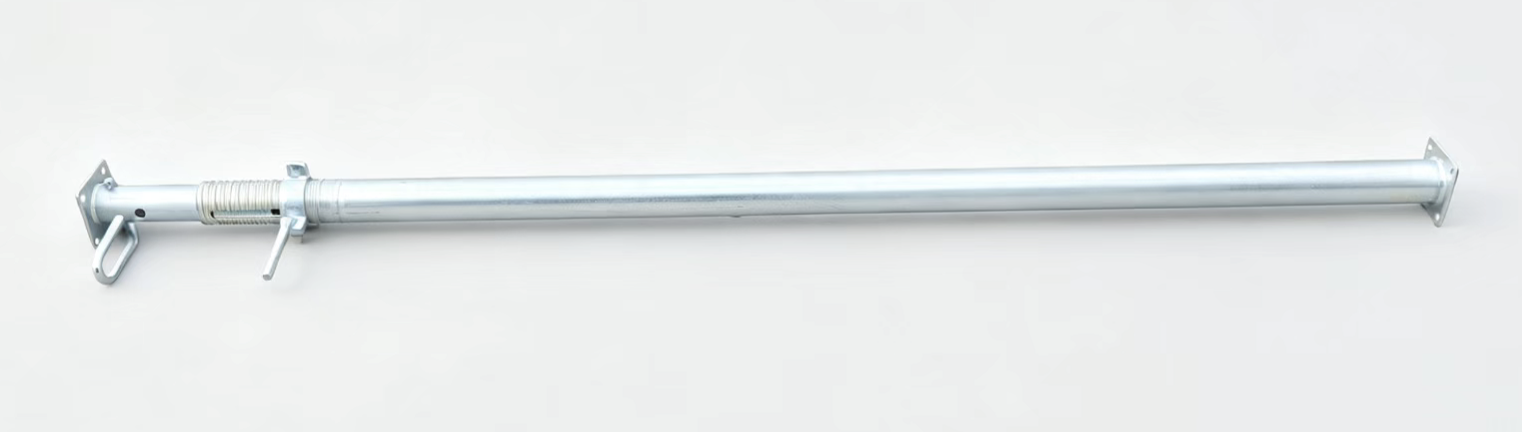

STEEL PROP 400A – Technical Specification

Inner Tube:

63.5 × 3.5 × 2150 mm (including top plate)

Material: Q355B

Outer Tube:

76 × 3.0 × 1892 mm (including base plate)

Material: Q235B

Base Plate:

120 × 120 × 5.75 mm (±0.15 mm)

Hole Diameter: 13 mm

Hole Center Distance: 90 mm

Material: Q235B

G-Type Hook:

Diameter: 16 mm

Material: 45# Steel

Nut with Handle:

Forged, marking available

Fine Adjustment (Threaded Sleeve / Screw Jack):

76 × 4.75 × 238 mm

Machined finish

Top Plate / Base Plate:

Steel stamped marking

Surface Treatment:

Electro-galvanized

Weight:

26 kg per piece
