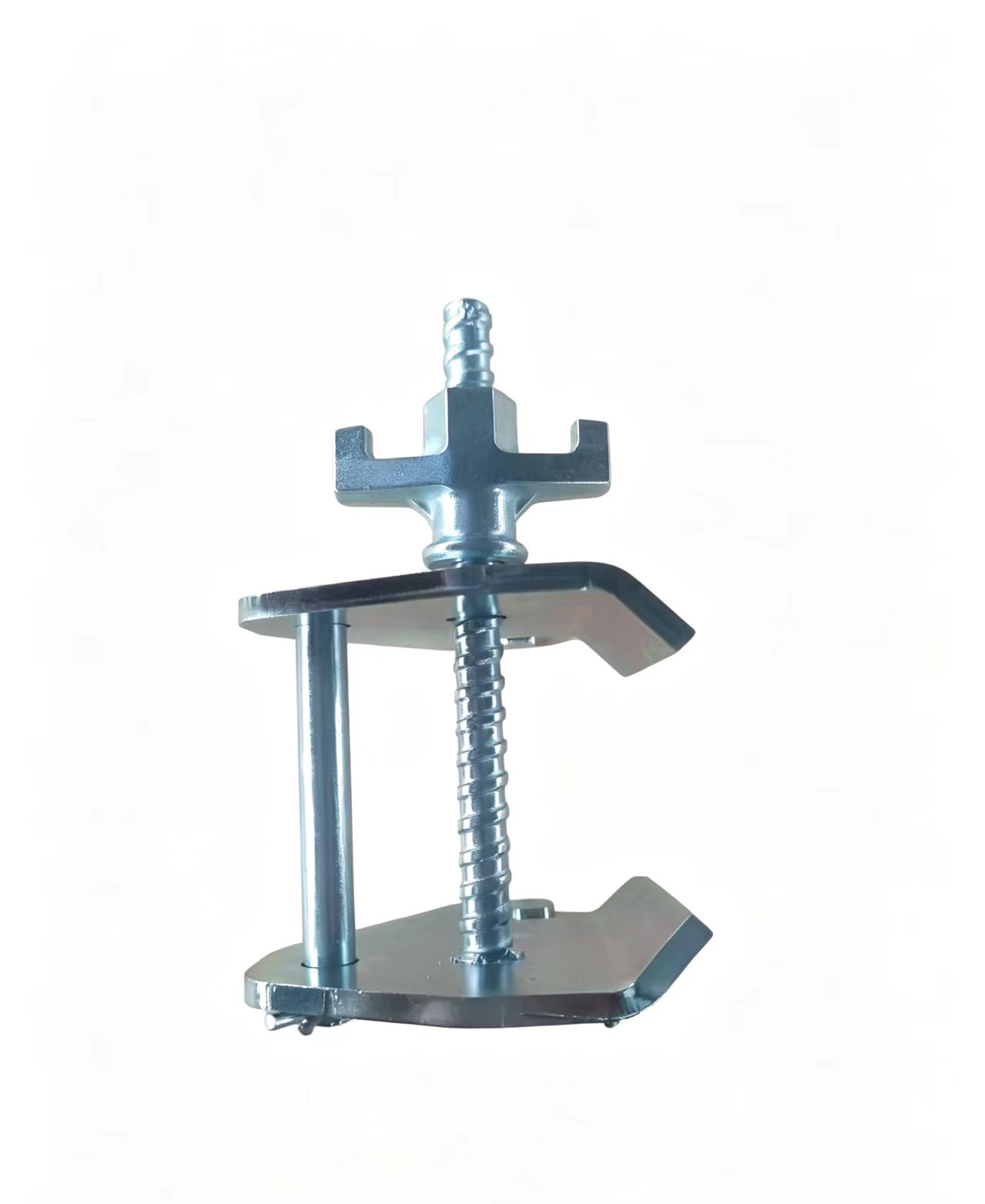

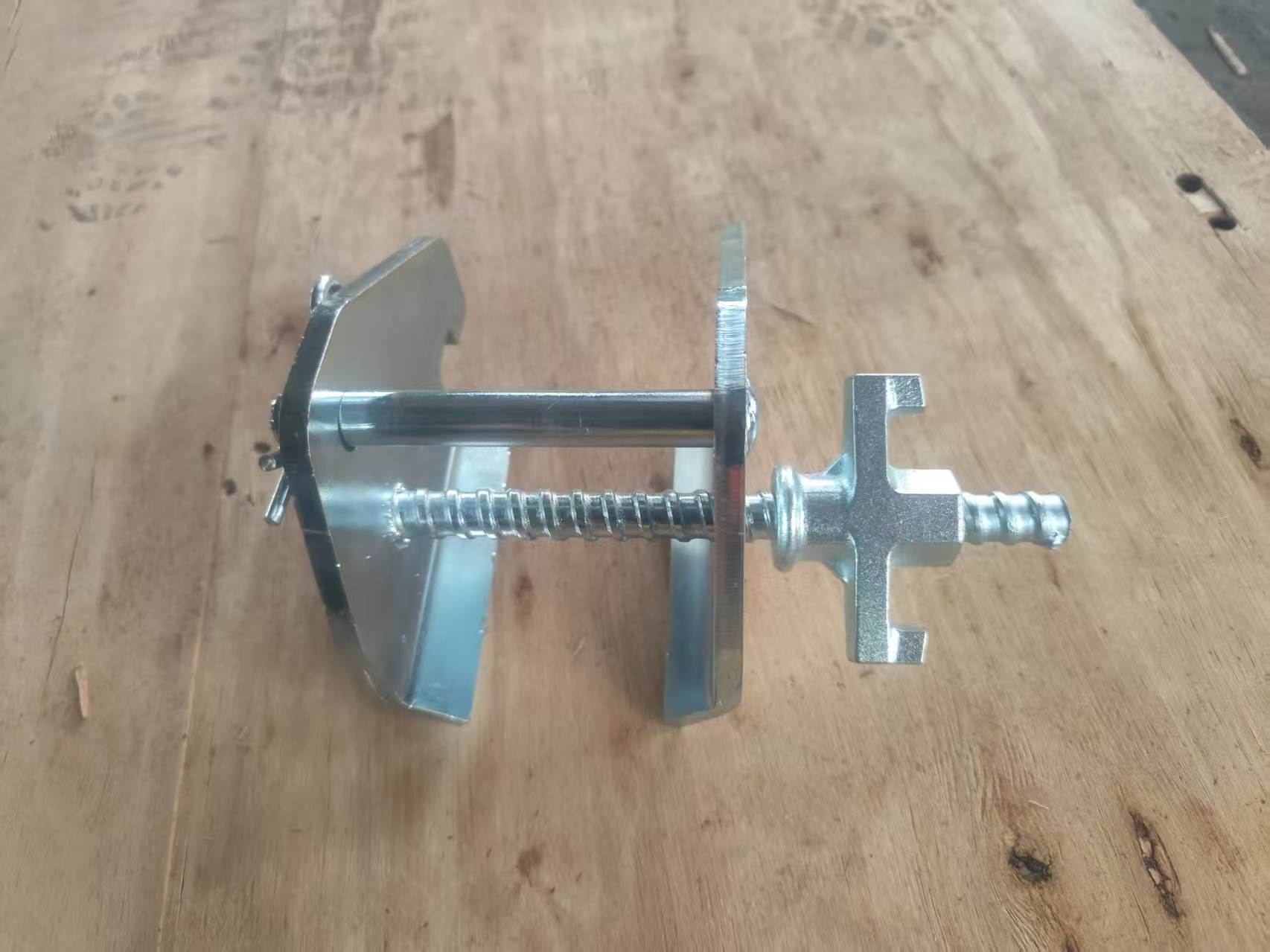

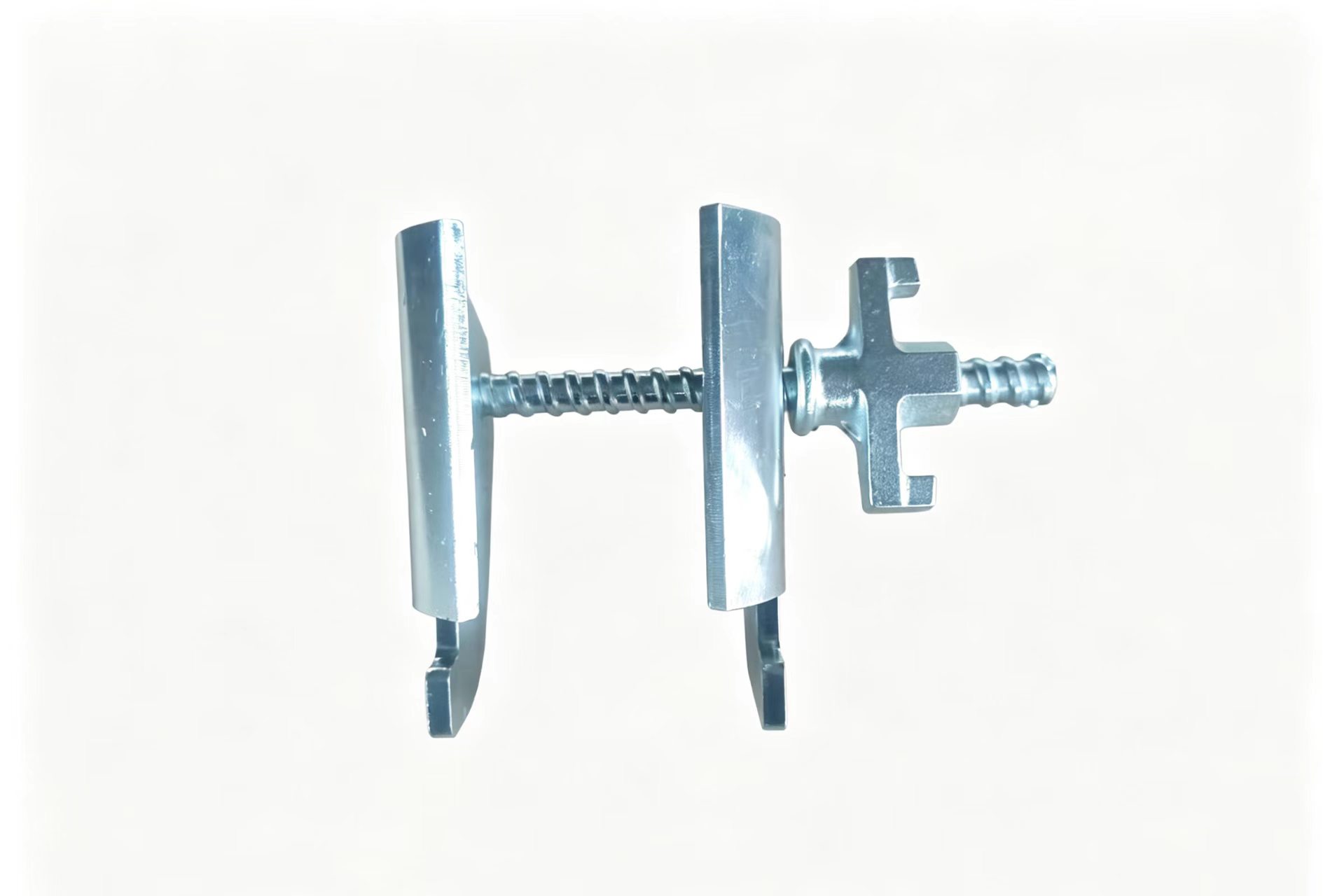

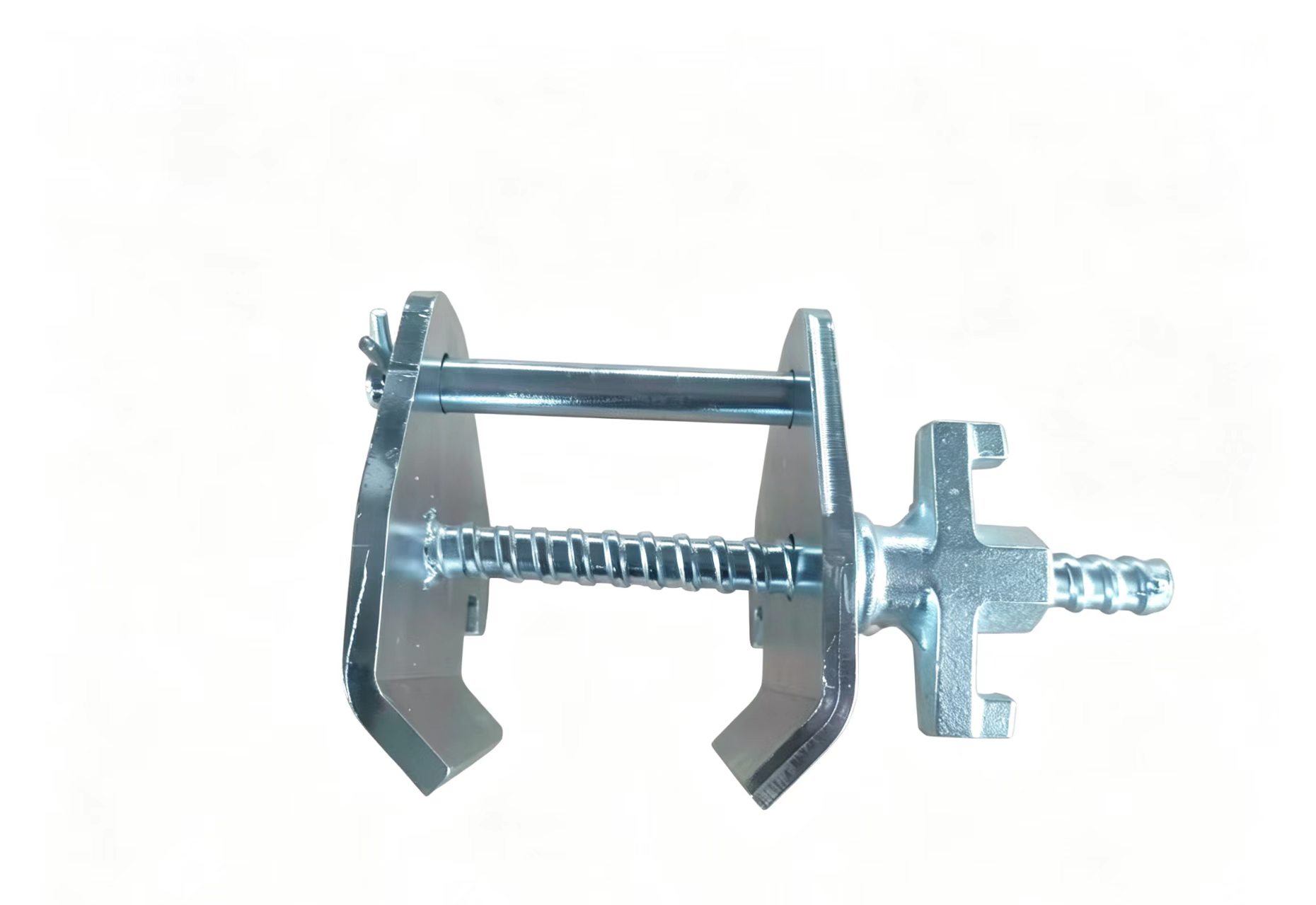

CLAMPS L/R Q235B, thickness 8.0 mm;

R-PIN:

Wing Nut: Side Plate (Left/Right): 169 × 135 × T8.0 mm, stamped and formed

Left Side Plate: Cusomer Logo . shall be stamped at the location indicated on the drawing. The marking must be clear, distinct, and legible.

Threaded Rod: Ø15/17 × 220 mm, threads formed by thread rolling.

Wing Nut (Mountain-Type Nut): Ø15/17, cast.

Center Round Bar: Ø16 × 134 mm, cold drawn and machined.

R-Clip (Hairpin Cotter Pin): Ø4 × 65 mm, formed by wire bending

Weight :2.91KG
